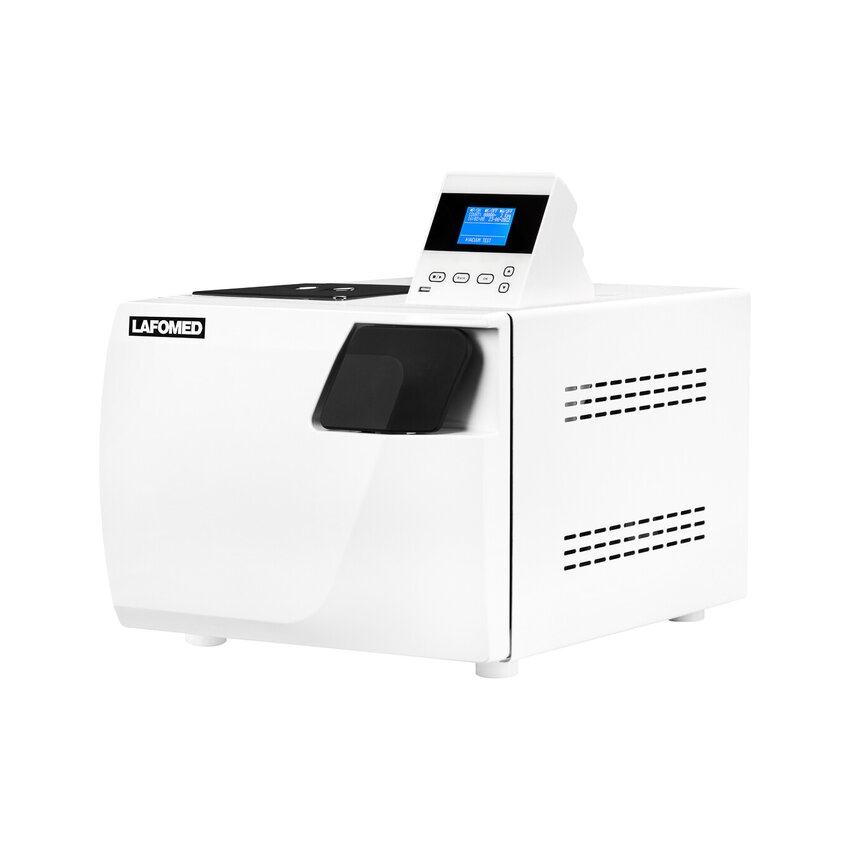

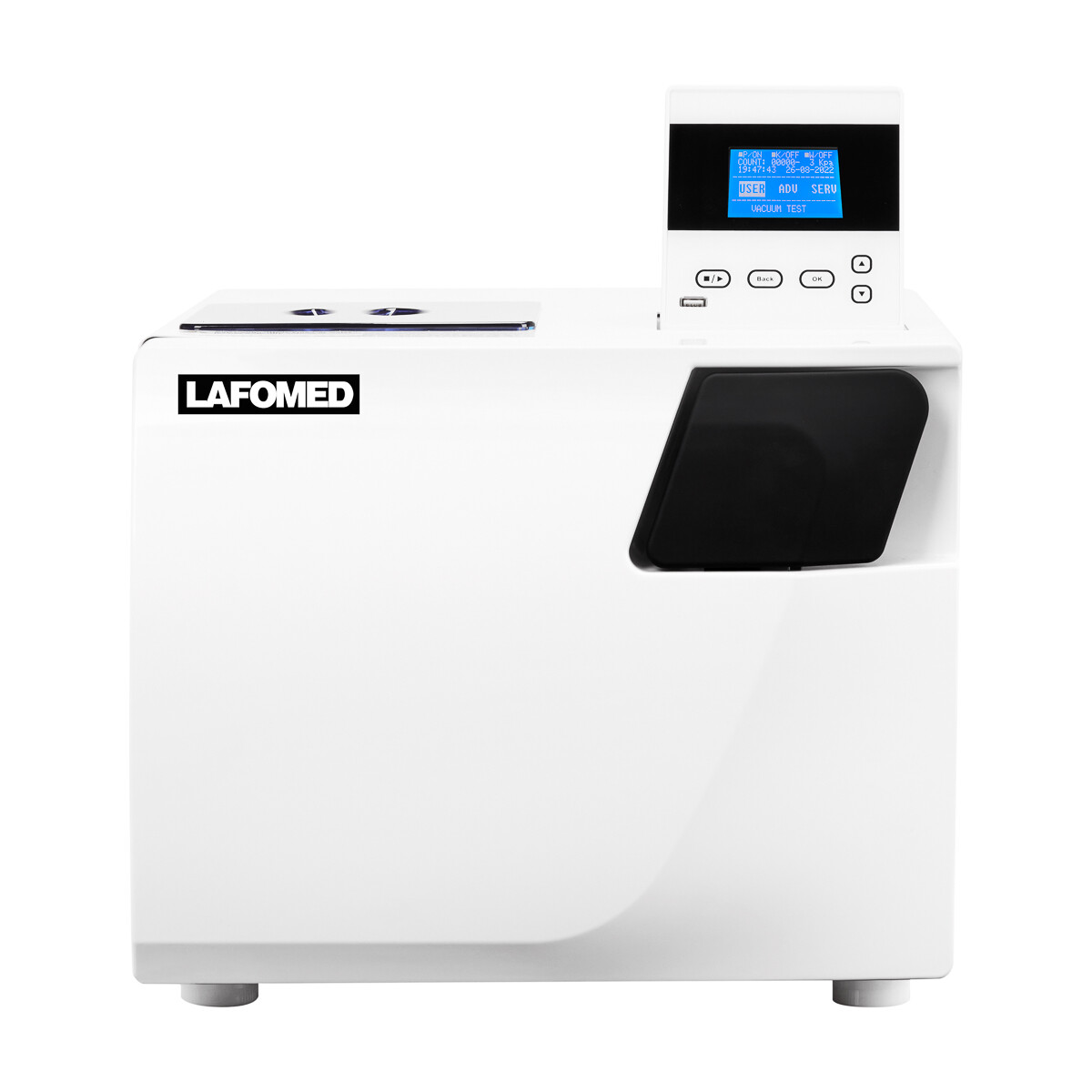

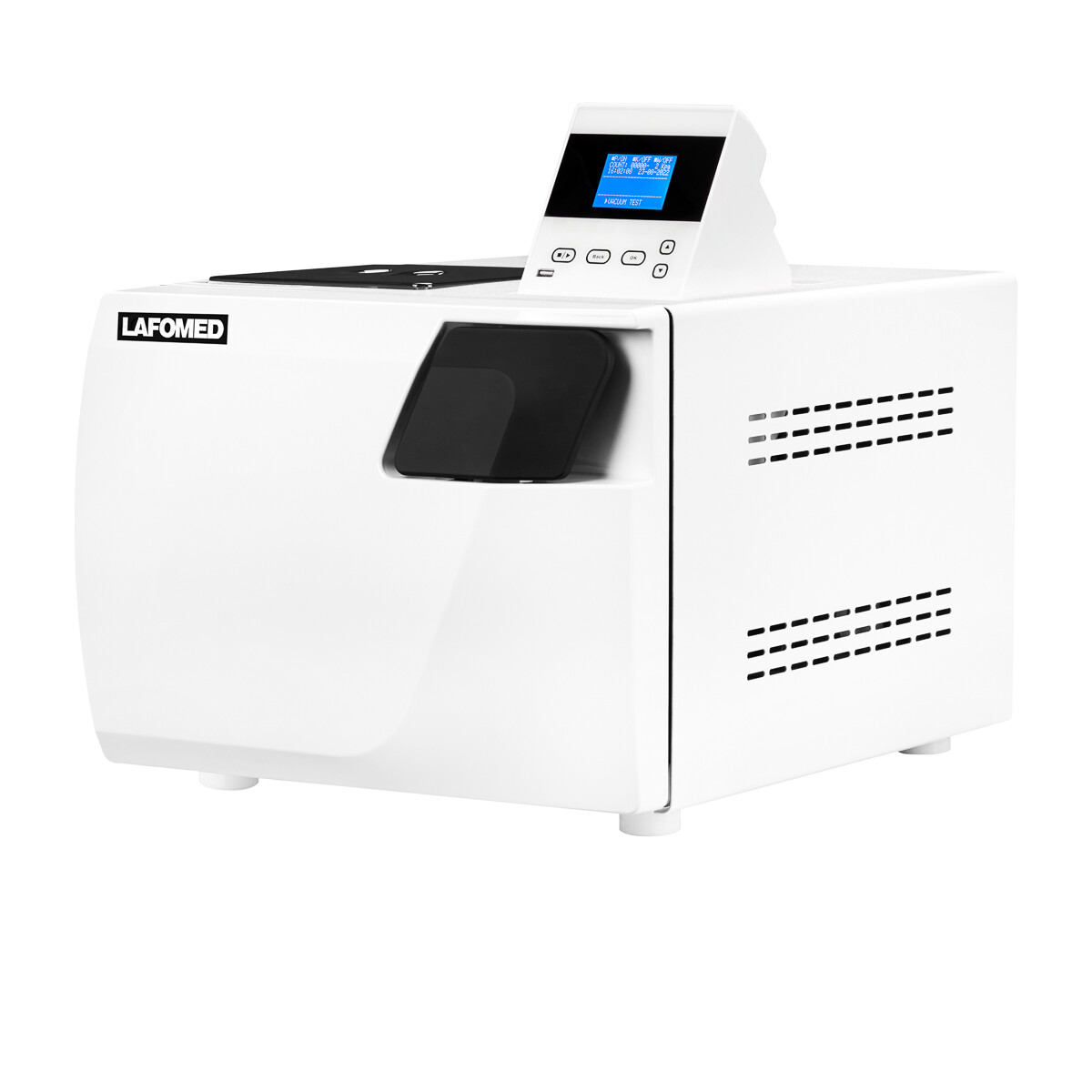

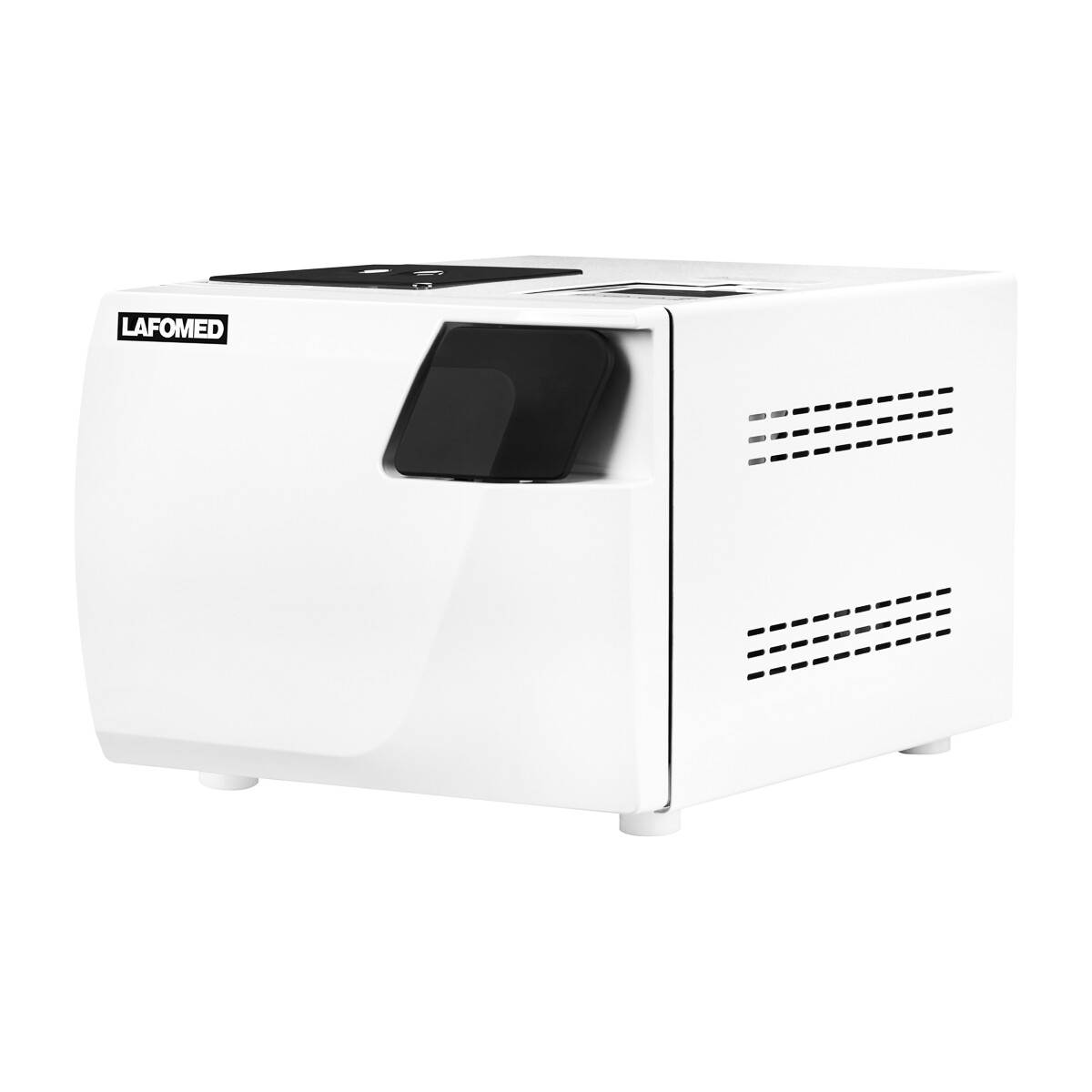

Lafomed Autoclave Compact Line LFSS12AC with Printer, 12 L, Class B

Medical class B autoclave

The Lafomed Compact Line LFSS12AC is a class B steam autoclave for sterilising both wrapped and unwrapped instruments, solid as well as hollow. It suits clinics, dental and podiatry practices, beauty and hair salons and tattoo studios.

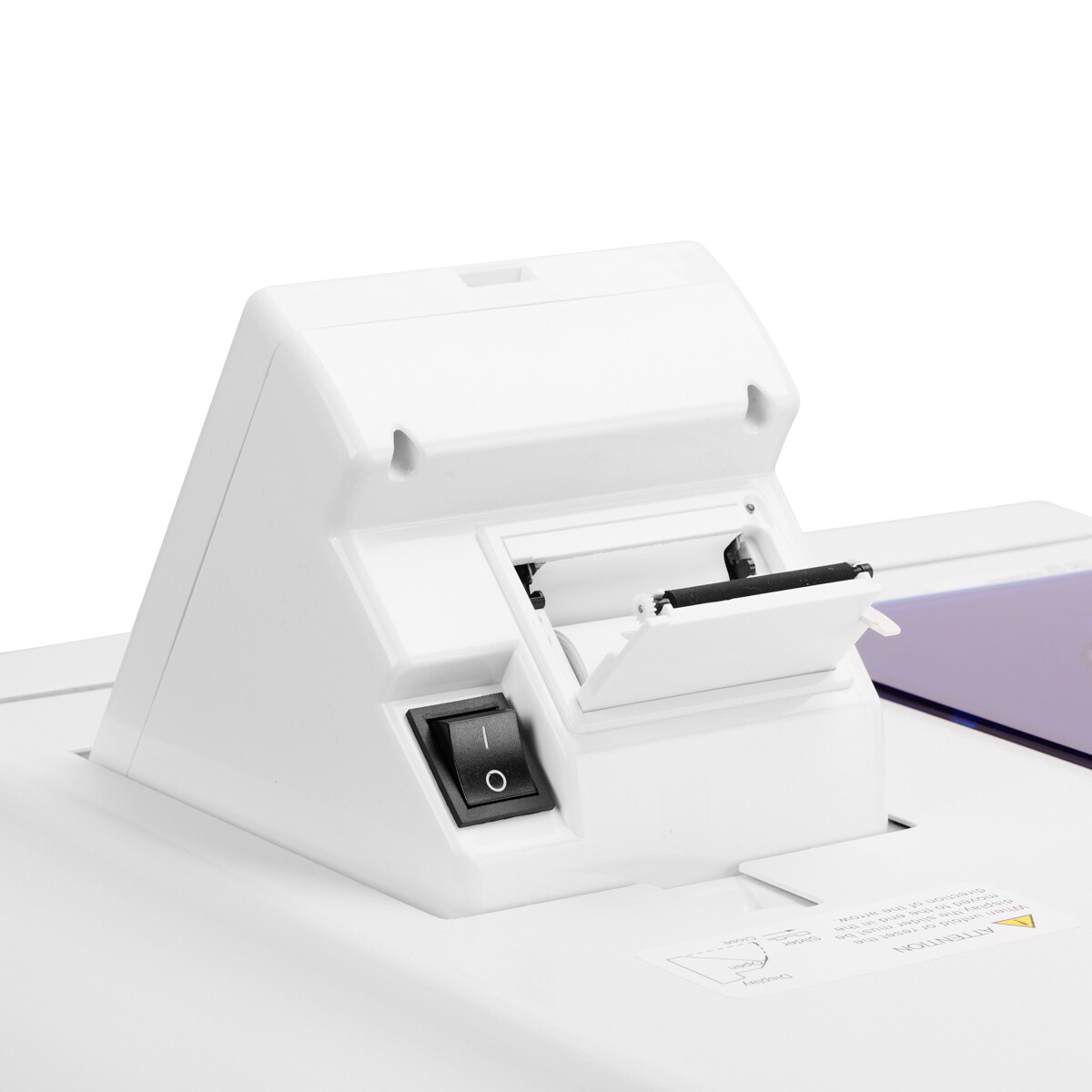

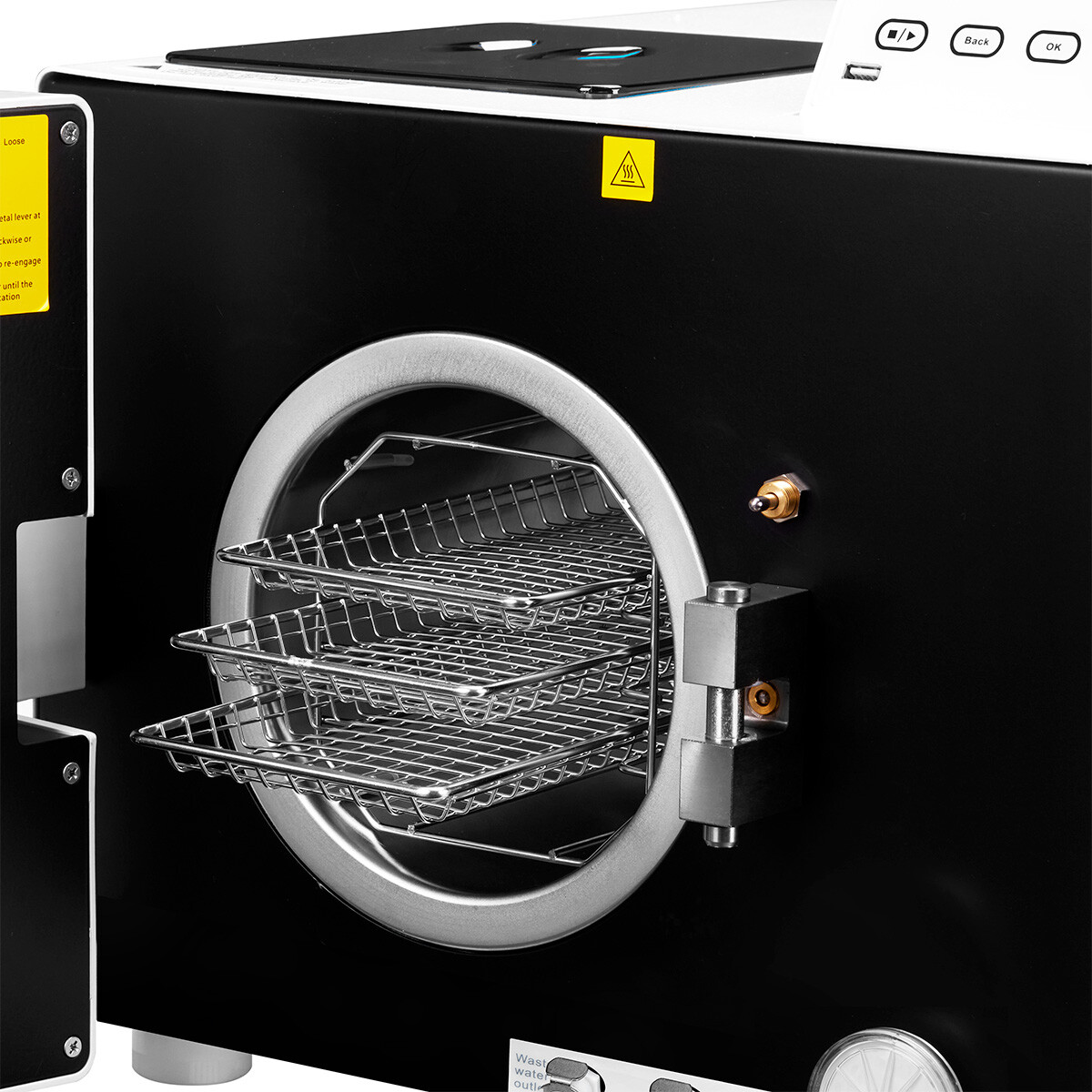

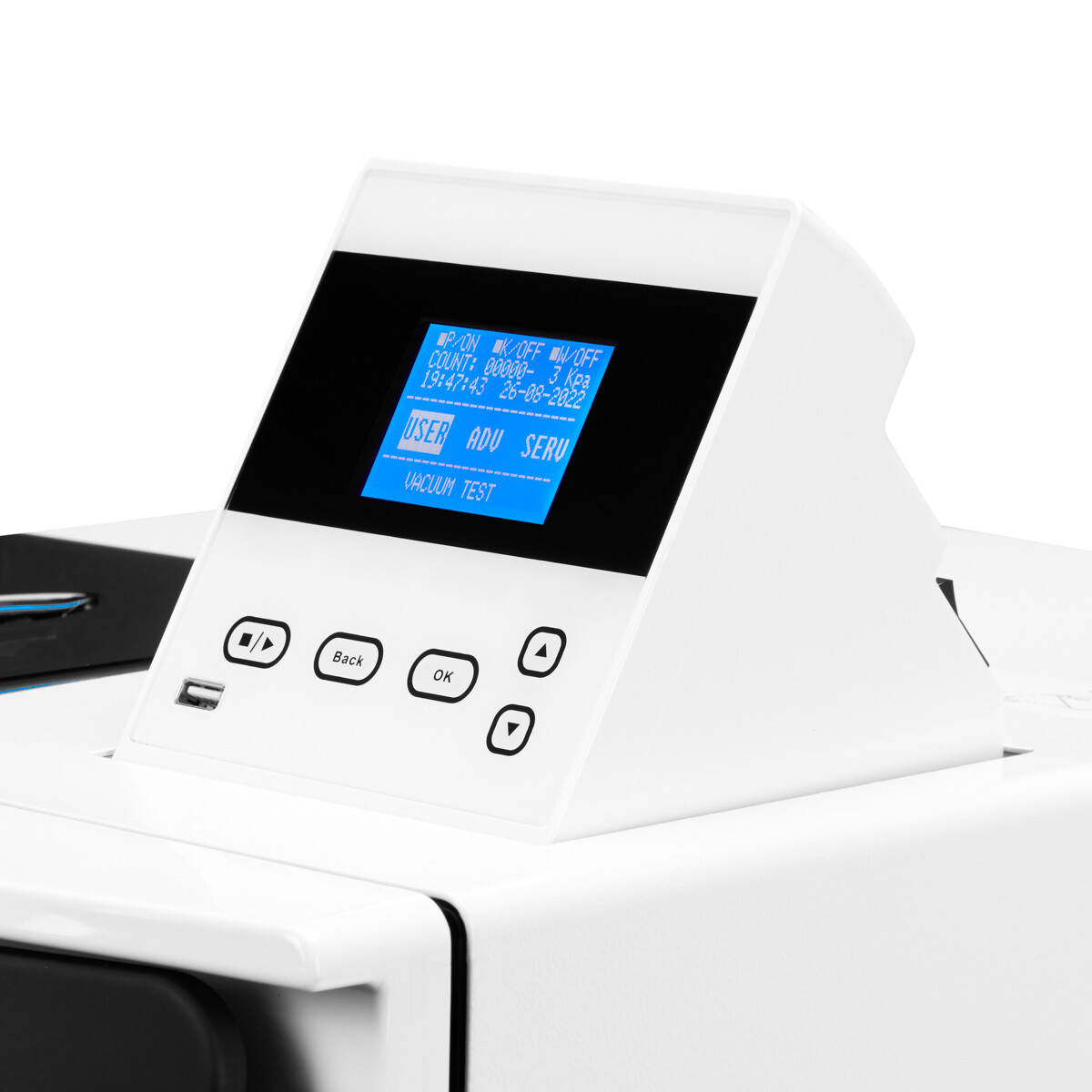

The chamber is 12 litres and holds 3 trays. The autoclave has a built-in thermal printer that needs no ink, an LCD display showing time, temperature, pressure and cycle progress, and a USB port so you can save cycle data to a USB stick.

Programmes and functions

• 10 automatic programmes: 7 sterilisation programmes, Bowie & Dick test, vacuum test and cleaning programme
• User programme where you set all parameters yourself
• Preheat and keep-warm (up to 8 hours) to shorten each cycle
• Delayed start at a chosen time (autostart)

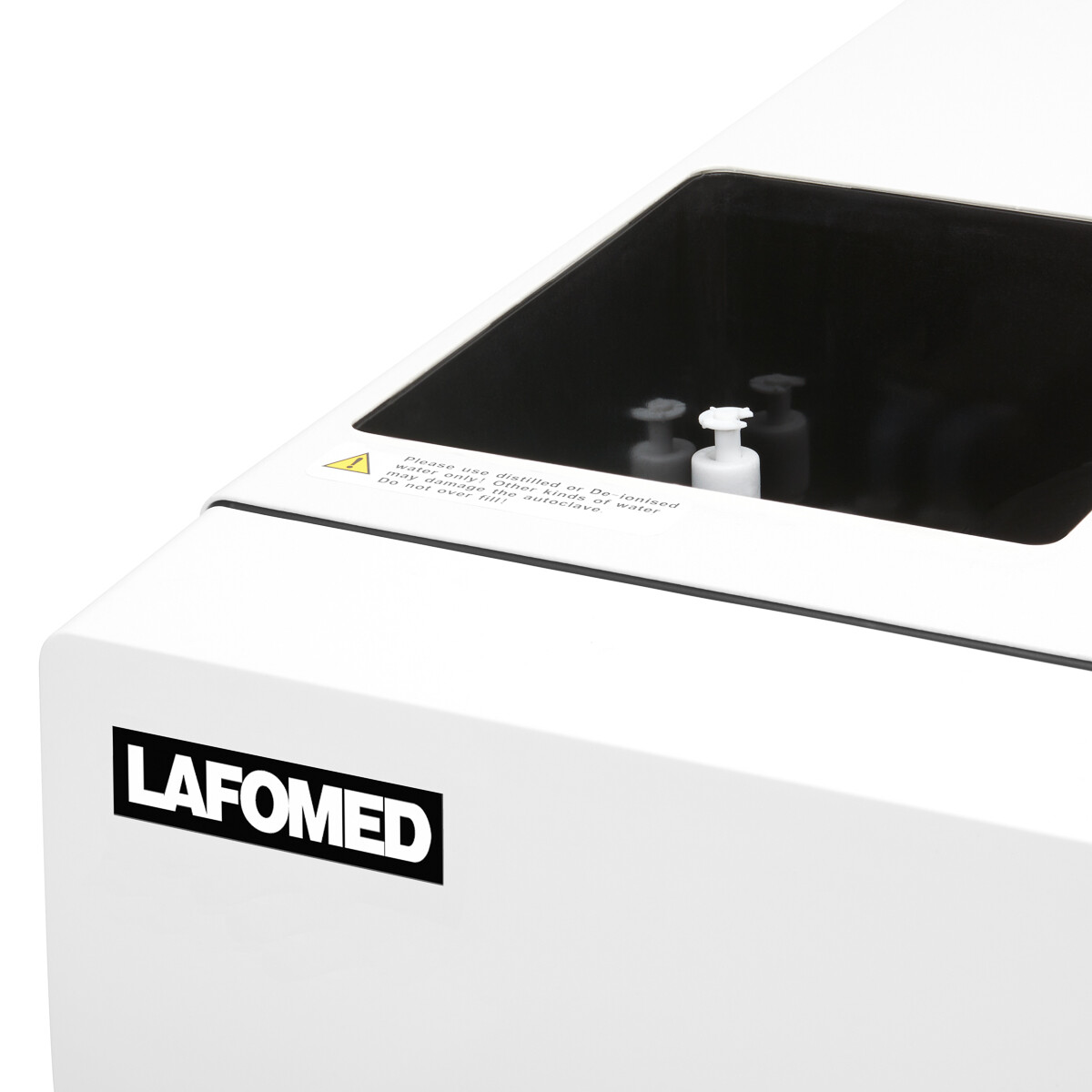

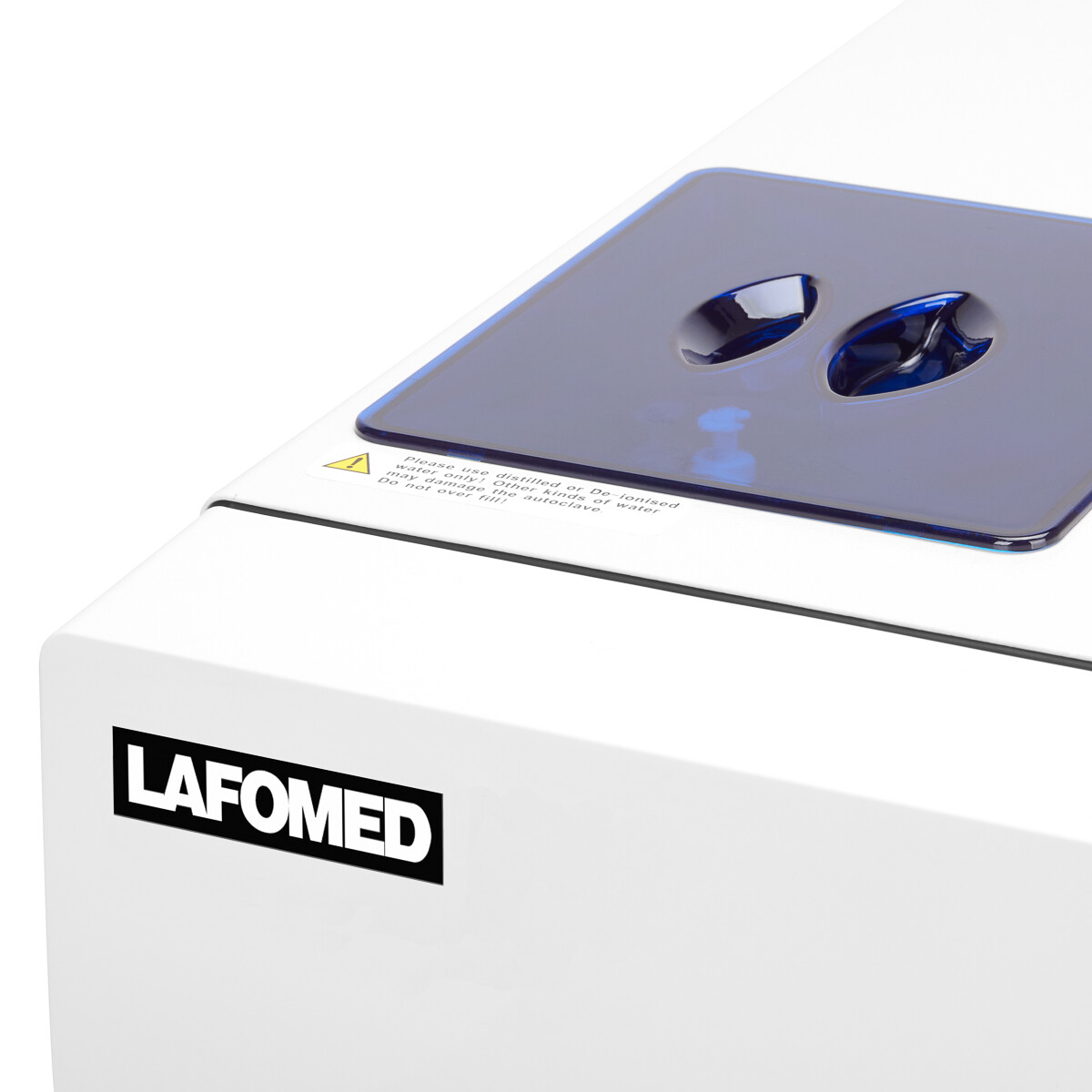

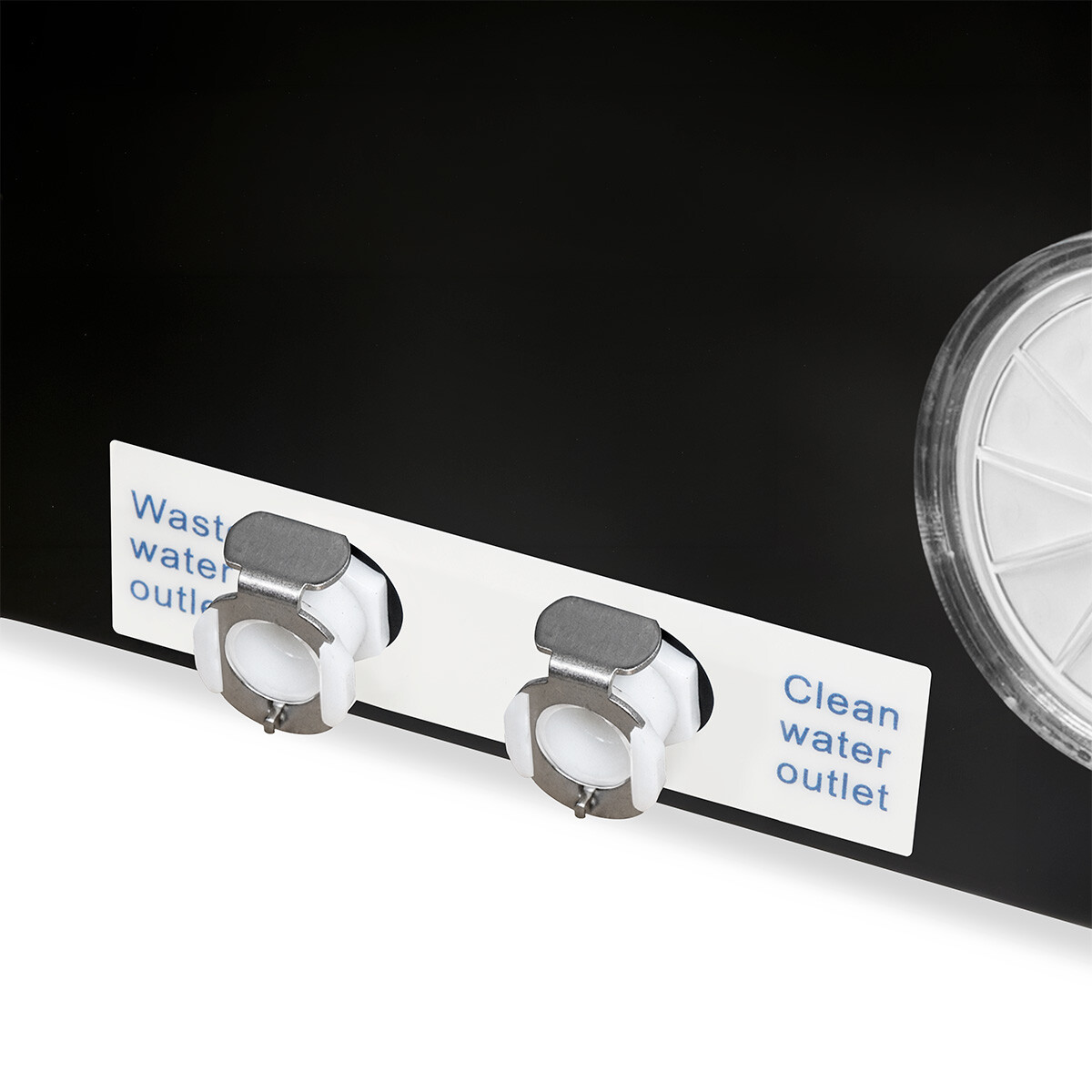

• Built-in tanks for clean (distilled) and used water
• Water quality sensor and self-diagnosis system

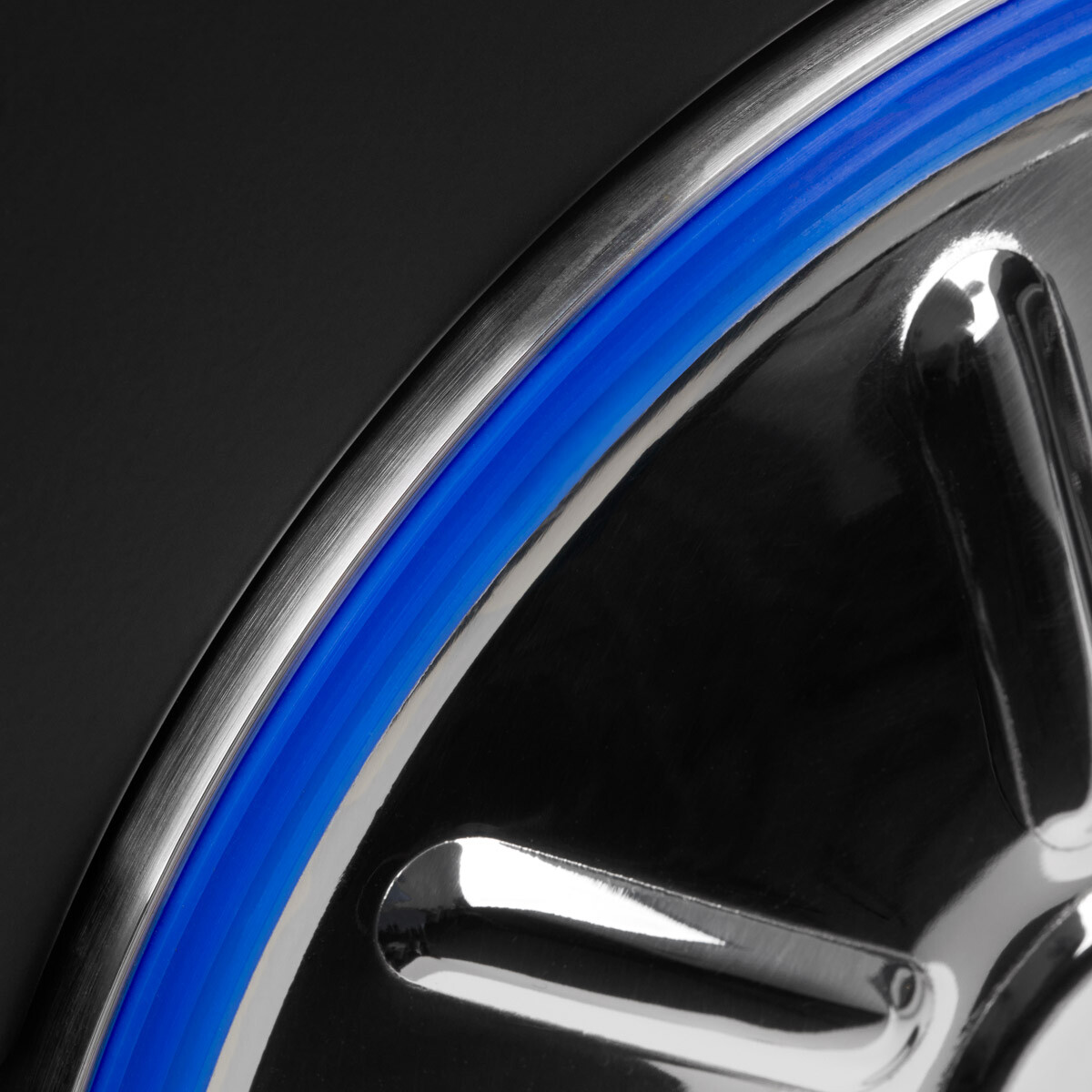

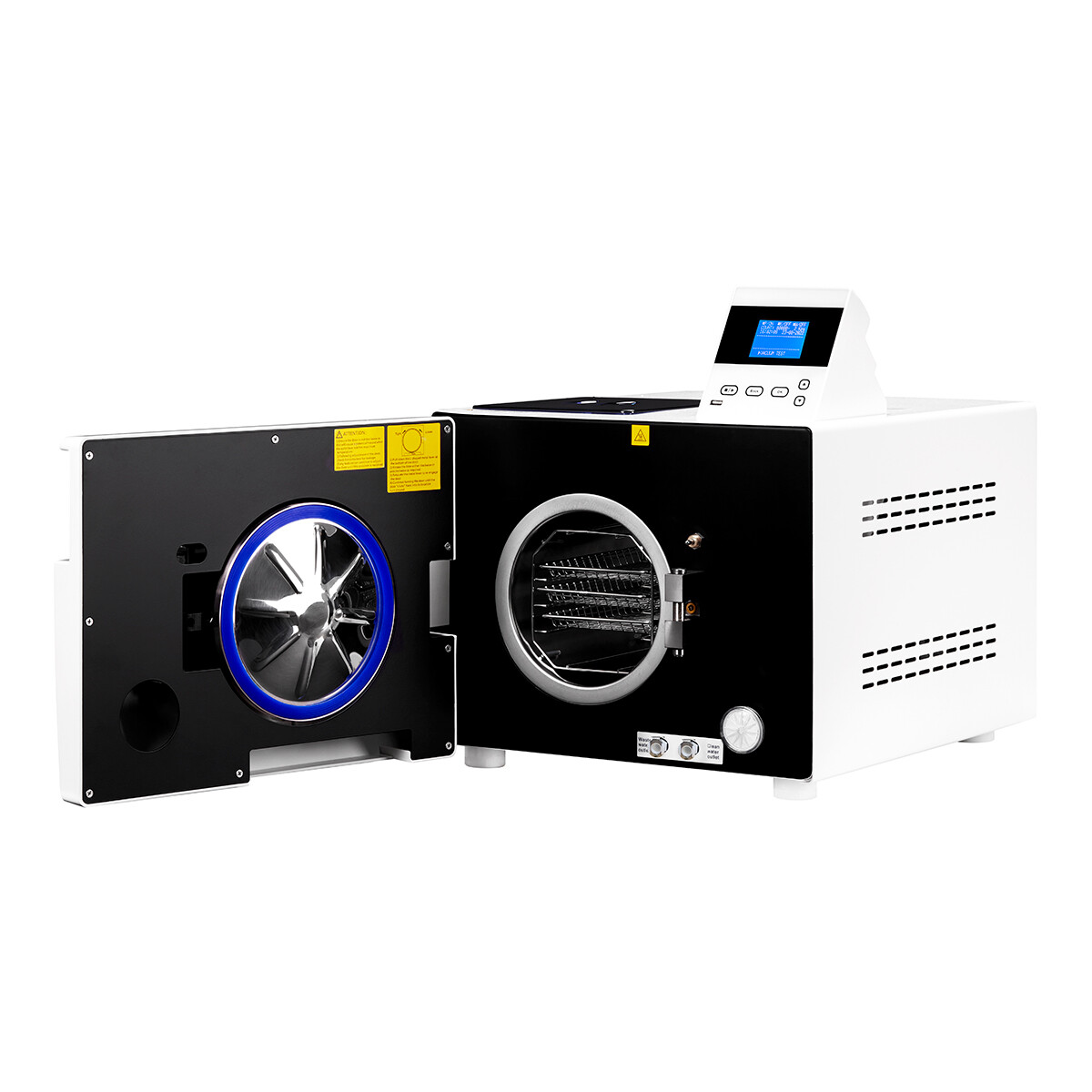

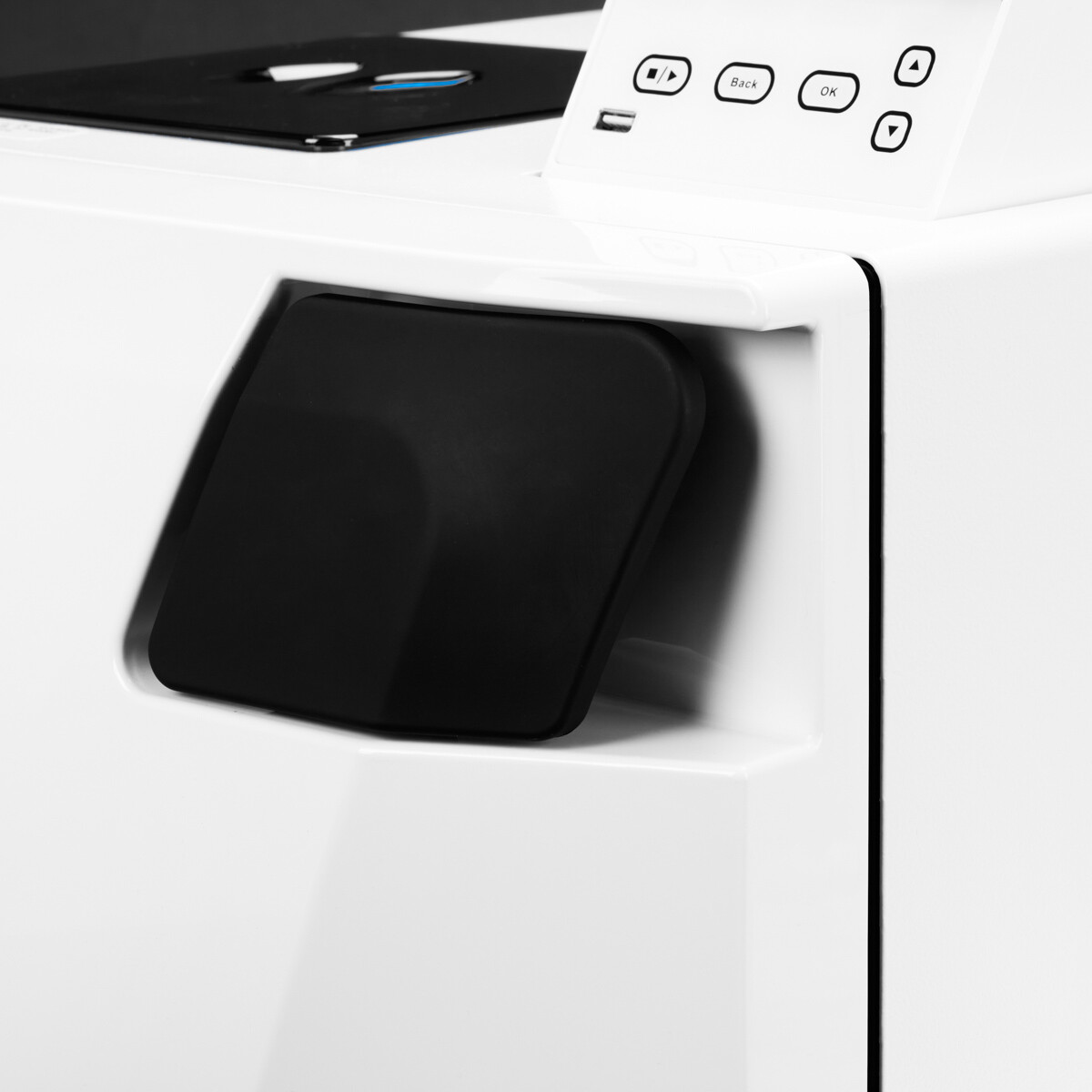

• Grade 304 stainless steel chamber and double door lock, mechanical and electronic
• Bacterial filter replaced every 150 cycles (available as an accessory)

Sterilisation programmes

• 121 °C solid – 110 kPa – 23 min*
• 121 °C porous – 110 kPa – 27 min*
• 121 °C hollow – 110 kPa – 30 min*
• 134 °C solid – 210 kPa – 7 min*
• 134 °C porous – 210 kPa – 11 min*
• 134 °C hollow – 210 kPa – 14 min*
• 135 °C prions – 210 kPa – 29 min*

* Time counted from when the chamber has heated up.

Specifications

• Medical class B, CE 1023, ISO 13485, EN 13060:2014+A1:2018
• Chamber volume: 12 litres
• Chamber: ⌀ 20 cm, depth 33 cm
• Power: 1.95 kW, 230 V, 50/60 Hz
• Max. working temperature: 137 °C
• Sterilisation time: 4–60 min, drying time: 1–25 min
• External dimensions: 65 x 52 x 41.5 cm
• Net weight: 47.7 kg
• Weight with packaging: 59 kg

In the box

• Autoclave

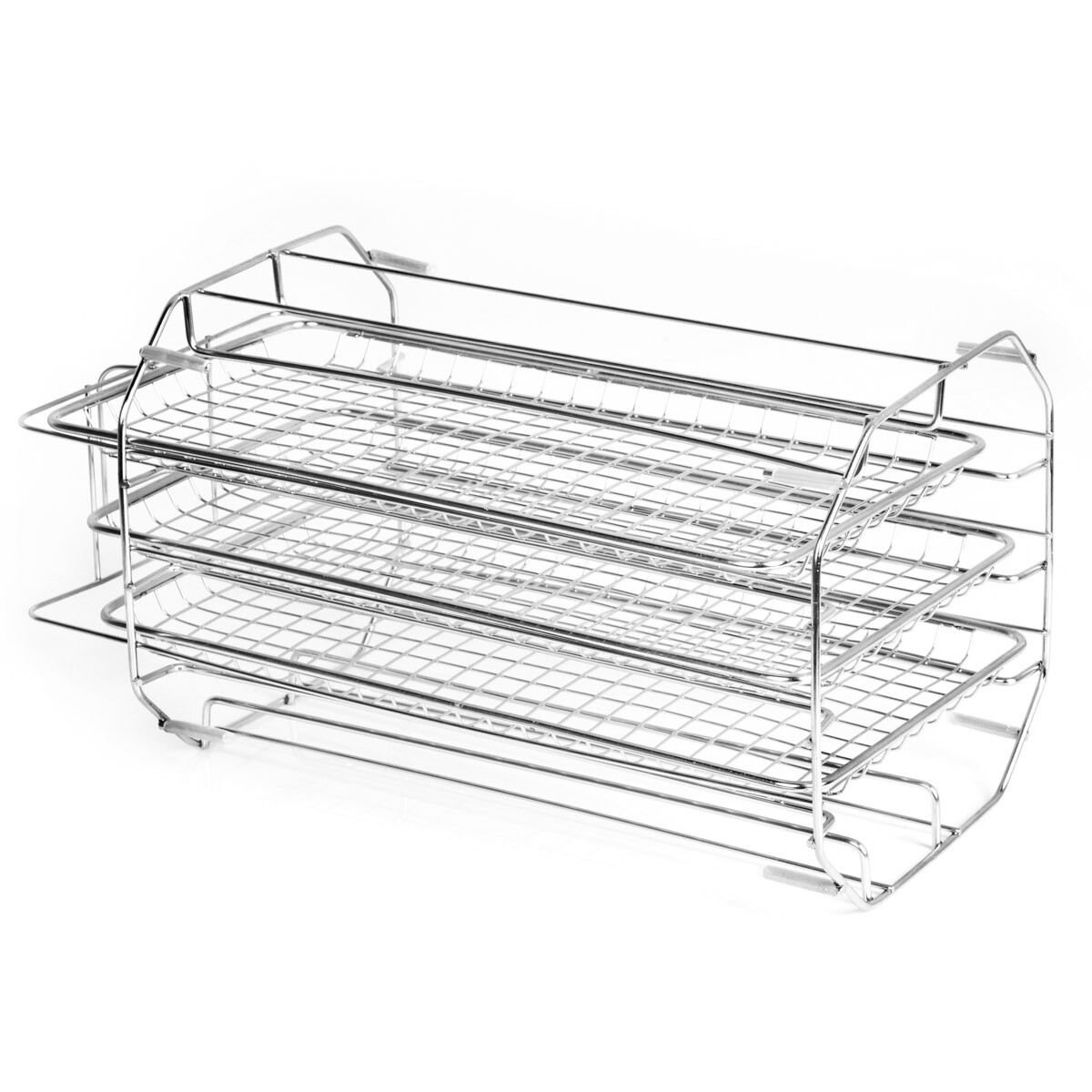

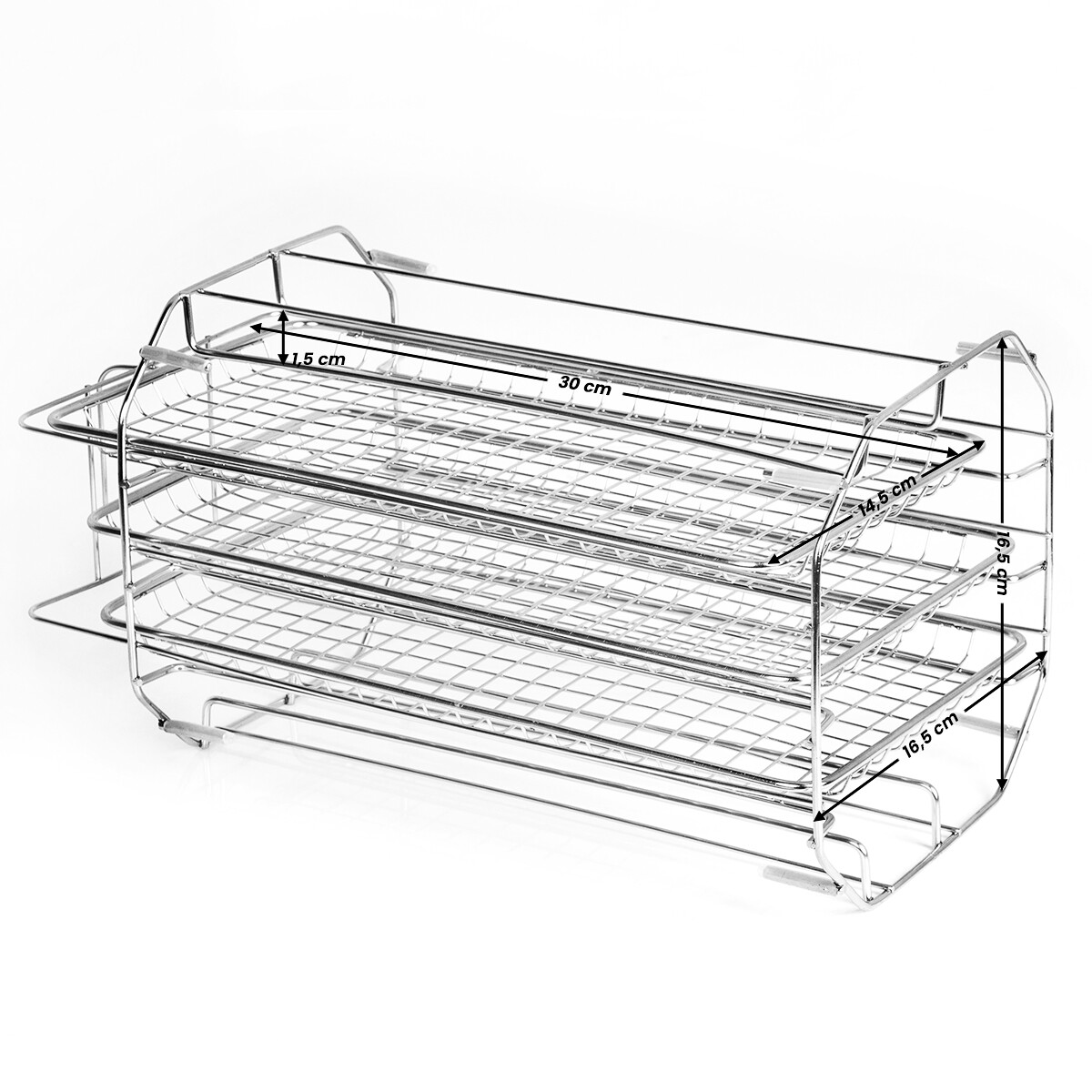

• Trays and tray rack

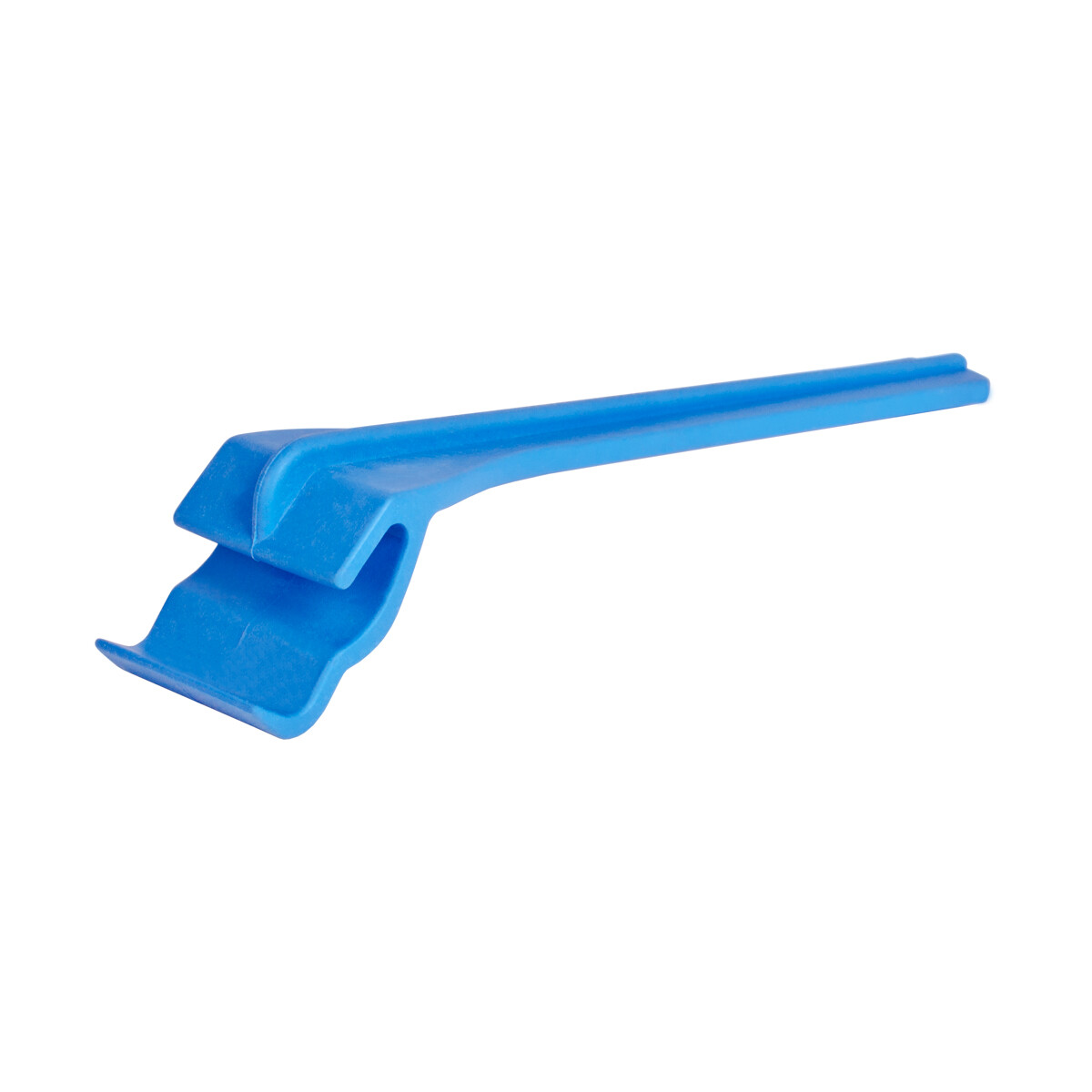

• Holder for lifting out trays
• Drain hose
• Power cord and fuse
• Manual in English
• Technical passport

Warranty

24-month warranty, regardless of the number of cycles.
