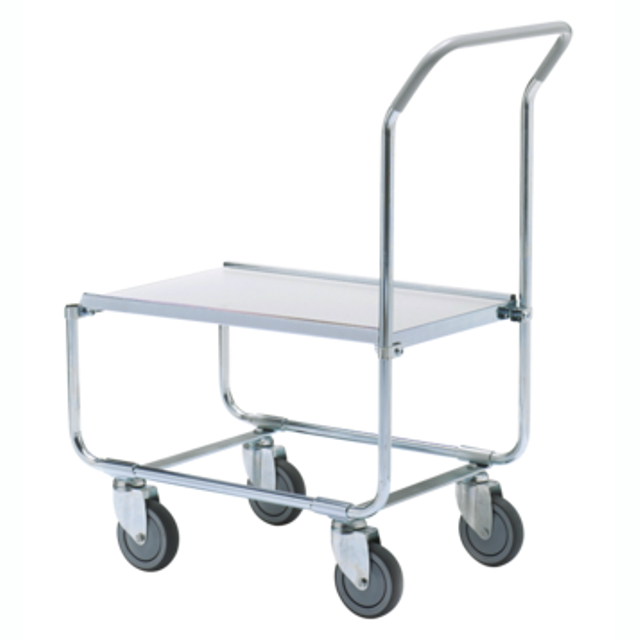

Platform wagon elevated, for 100 kg

PLATE WAGON INCREASED, FOR 100 KG

Simple, stable and flexible trolley with elevated plateau, for moving individual packages.

Simple, stable and flexible trolley suitable for moving single packages. Suitable for standard slopes, 600x400 mm. The drawers end up at a good height for lifting and mounting around the workplace.

Chassis

Chassis in galvanized 22 mm tubes.

shelf panel

12 mm durable and laminated shelf, dimensions 620x425 mm. Height to floor: 460 mm. Adjustable in height from 460 mm onwards. Platform wagon elevated has shelf edge profiles 25x20 mm on the long sides of the shelf.

Handle

in galvanized 22 mm tube with plastic cover at grip surfaces.

Wheel

Four castors with gray rubber band 125x32 mm, ball bearing hub and thread protection.

Maximum load

100 kg.

Measure

760x460x960 mm (LxWxH)
